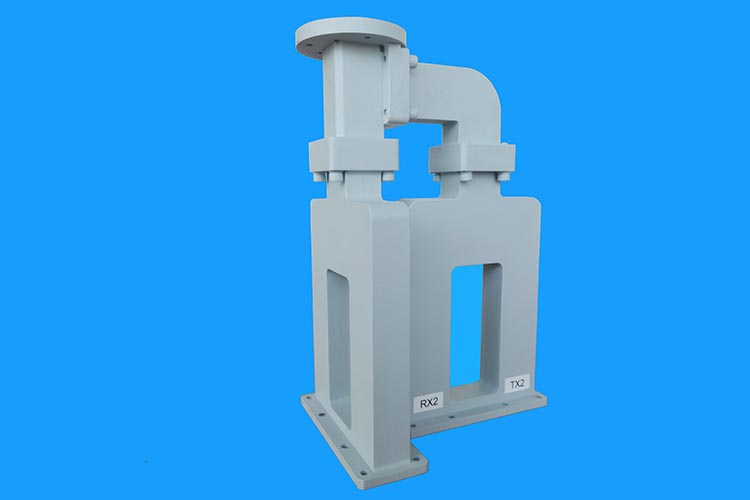

Extended Ku Band Diplexer(Linear POL)

Homepage / Extended Ku Band Diplexer(Linear POL)

Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 Ghz for the commercial, military .
A full array of standard filters and diplexers is available for the various commercial and military frequency bands, Many are “off the shelf products”. Custom designed filters and diplexers for specific customer applications are available.

FOUR-PORT
Operating Frequency, GHz TX RX
13.75-14.5 10.70-12.75
Polarization Linear Linear
VSWR 1.30:1 1.30:1
Cross POL, dB 35 35
Insertion Loss, dB ≤0.5dB ≤0.5dB
Interface WR75 WR75
Power Handing, KW 1
Isolation, Tx to Rx, dB ≥85dB
Tx to Tx, dB ≥30dB
Rx to Rx, dB ≥30dB
Standard and Option
Pressurization No or Customized
Material Copper or Customized
Exterior White paint or Customized
