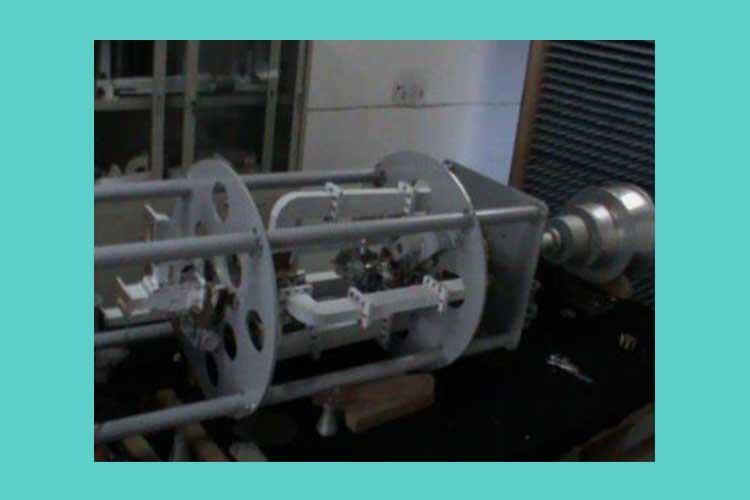

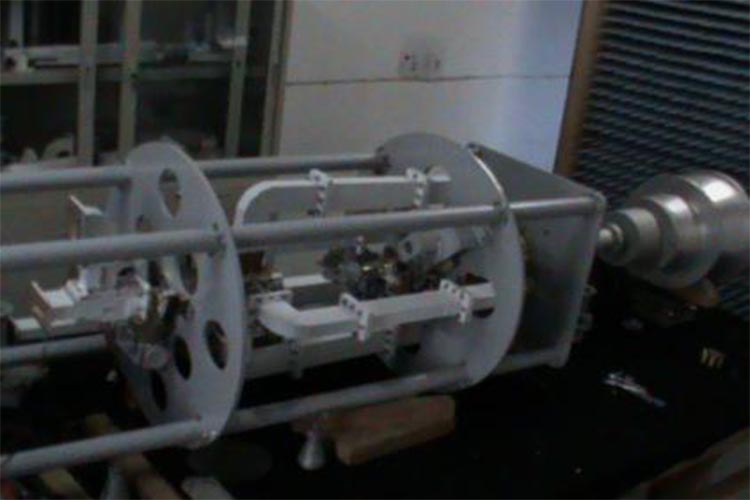

Customer C Band Diplexer(C&Ku)

Homepage / Customer C Band Diplexer(C&Ku)

Probecom Technologies’ designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 Ghz for the commercial, military .
A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are “off the shelf products”. Custom designed filters and diplexers for specific customer applications are available.

C/Ku Dual Band Network
Operating Frequency, GHz C Ku
3.4-4.2GHz 10.95-12.75GHz
Polarization



Dual Linear/Dual Circular

(switchable)

Dual Linear
VSWR 1.30:1 1.30:1
Axial Ratio

(Circular-Polarized)

1.06:1
Interface WR229 WR75
Insertion Loss, dB ≤0.3dB ≤0.5dB
Isolation L/R-HCP=20dB

H/V-POL=30dB

XPD(linear) ≥35dB
Standard and Option
Pressurization No or Customized
Material Copper Electroforming or Customized
Exterior White paint or Customized
