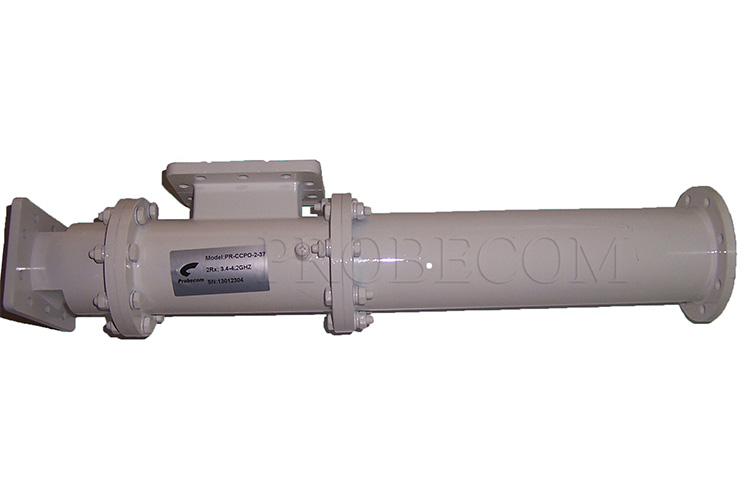

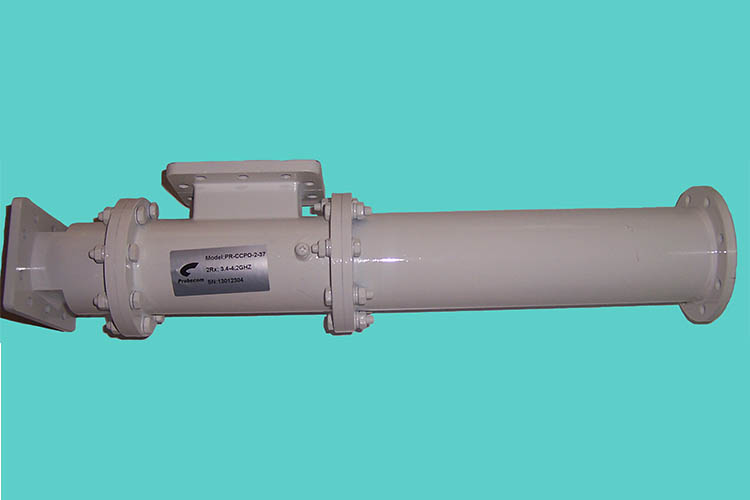

Extended C Band Diplexer (RX Only Circular POL)

Homepage / Extended C Band Diplexer (RX Only Circular POL)

Probecom Technologies designs, fabricates, and electrically tests waveguide filters and diplexers from 1-40 GHz for the commercial, military.

A full array of standard filters and diplexers is available for the various commercial and military frequency bands. Many are “off the shelf products”. Custom designed filters and diplexers for specific customer applications are available.

  TWO-PORT
Operating Frequency, GHz RX1 RX2
3.4-4.2 3.4-4.2
Polarization Circular Circular
VSWR 1.30:1 1.30:1
Axis Ratio, dB 3 3
Insertion Loss, dB ≤0.3dB ≤0.3dB
Interface CPR229F CPR229F
Isolation, Rx/Rx, dB ≥15dB
Standard and Option
Pressurization No or Customized
Material Aluminum Casting or Customized
Exterior White paint or Customized
