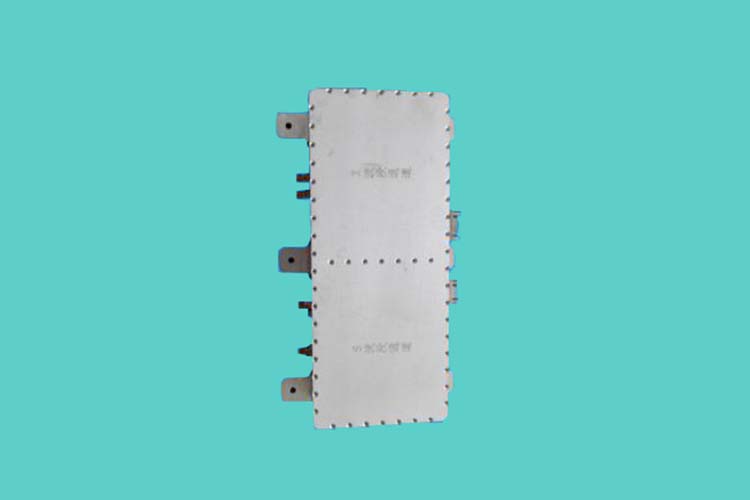

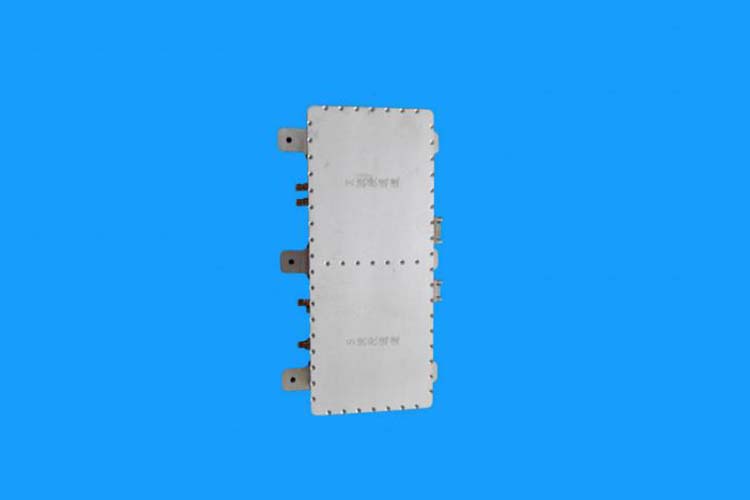

50W SSPA 2.7-6.2G 8-12G

Introduction

① Ultra-wideband doubled frequency CW SSPA

② High frequency linear communication SSPA

③ Pulse system SSPA

④ Ka band KW    PW /CW SSPA

⑤ Q band 1~400 W     CW     SSPA

⑥ Ultra-wideband doubled frequency traveling wave tube driver MPM ⑦ Phased array Tx/Rx components

⑧ V~W band SSPA

⑨ THZ frequency conversion, frequency doubling and amplifying module High performance, high power, high efficiency, light weight, miniaturization

and easy to use are the characteristics of our products, standardization and serialization are our goal.

2.7-6.2G 8-12G 50W

Operating system: CW (50% max)

Application: Missile-borne (-40~+50°C) MTPF ： ≥2000h

Peak Power:     ≥47d Bm

Power gain: ≥50d B

Small-signal gain: ≥60dB Modulation depth：≥90dBc Channel Efficiency: ≥25%

Output: Band/ Dual channel /same amplitude phase/Electrical switching Size:230*150*50mm
