3.0m earth station antenna

Homepage / 3.0m earth station antenna

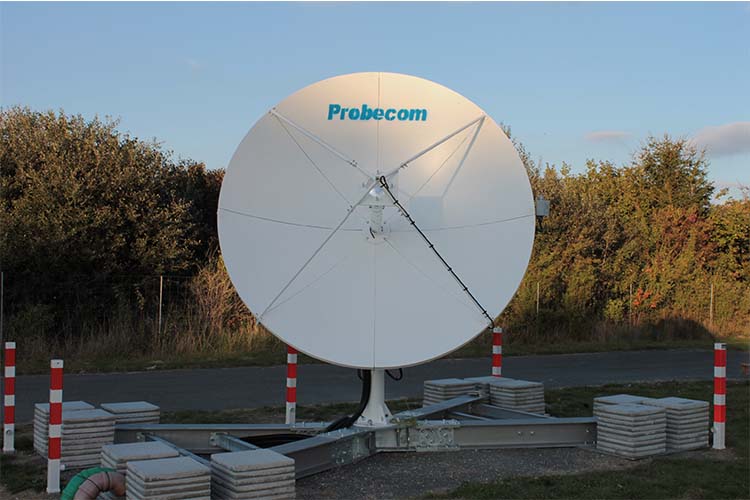

probecom 3.0-meter antenna delivers exceptional performance for transmit/receive and receive only applications for L through Ka-band frequencies. This antenna offers a reflector design that incorporates precision-formed panels, truss radials and hub assembly using matched tooling for interchangeable components. It features an innovative Cassegrain or Ring Focus feed and sub-reflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference. A large center hub provides spacious accommodation for equipment mounting. The reflector is supported by a galvanized elevation over azimuth kingpost pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.

Options

*L,S, X ,Ka bands and multi-bands

*Customer feed system design

*800MHz Extended C band is available

*Full motion antenna

*Feed blower or deicing sub-systerm with automatic controls

*Two or four Tx/Rx port in linear or circular polarized feeds

*Antenna control system with tracking

*ODU Support Kits

*Increase the surface spray zinc thickness along seaside.

C band 3.0 meter earth station antenna
